Formvar Carbon Films
Formvar Carbon Films

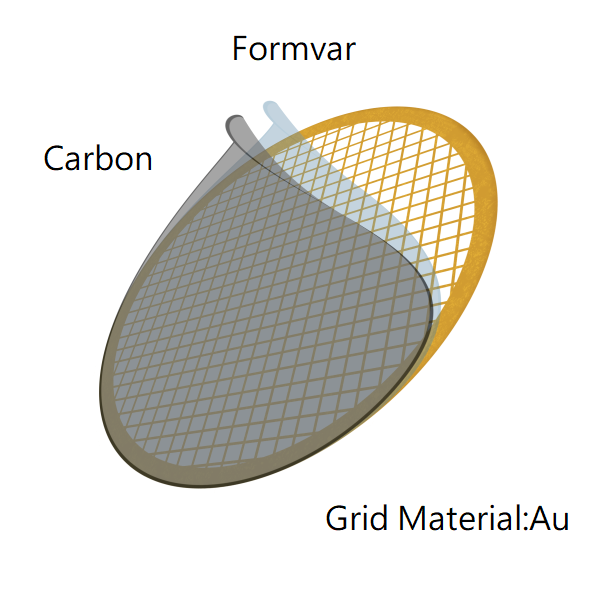

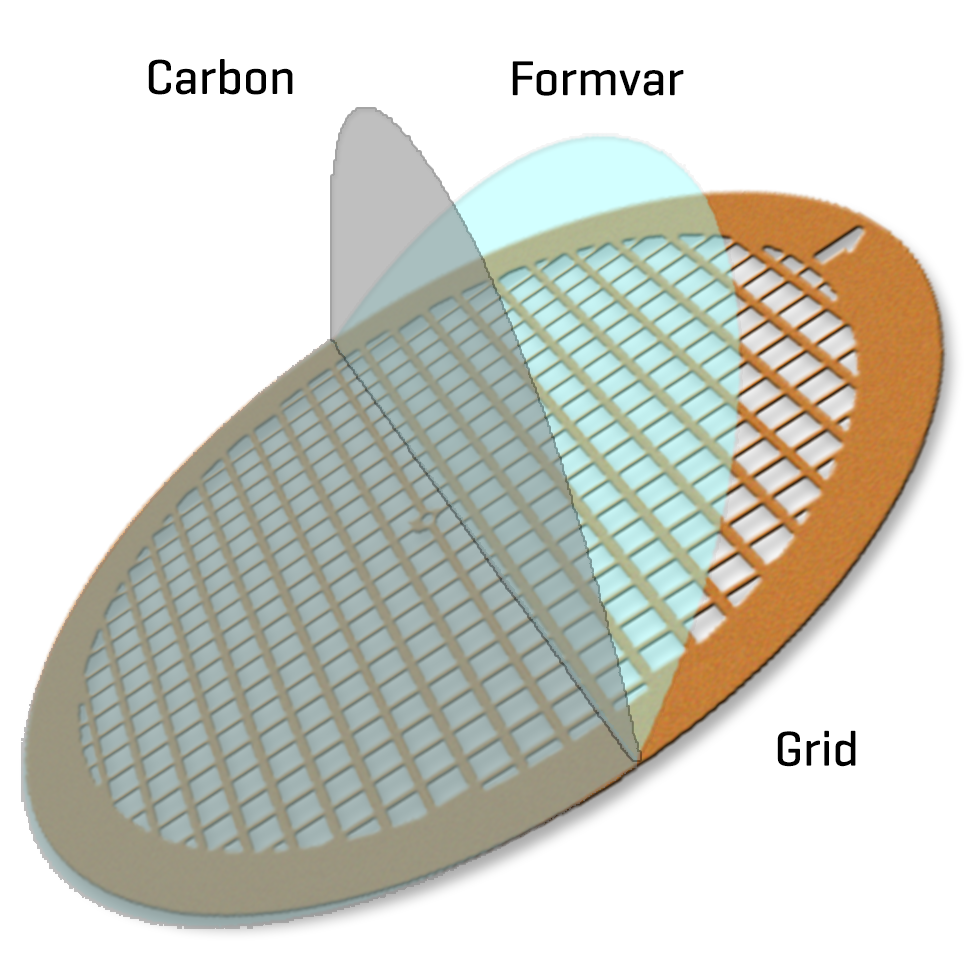

Formvar/Carbon support films consist of a thin layer of Carbon evaporated onto a Formvar film. This offers improved conductive properties in comparison to standard Formvar films. These are typically thicker support films which may compromise high resolution imaging but will return a stronger and more stable film. The Formvar layer is typically approx.10nm thick with a thin (<5nm) layer of Carbon on top. Different combinations of grid meshes, pack sizes and film thicknesses are available on request.
Code | Description |
---|---|
Formvar/Carbon film on Copper |
|
FC200Cu50 |
Formvar/Carbon film on Copper 200 mesh (50) |
|
Formvar/Carbon film on Copper 300 mesh (50) |
Formvar/Carbon film on Gold | |
FC200Au |
Formvar/Carbon film on Gold 200 mesh(50) |
FC300Au |
Formvar/Carbon film on Gold 200 mesh(50) |
